MODEL: XL 80HDGSM
DIST: 80,000# CONC: 80,000# IN 16'
OAL: 53' OAW: 102"
GOOSENECK-
Length: 11' full width scrapper neck
King Pin Setting: 16"
Swing Clearance: 86"
5th Wheel Height: 49" W/ 5 variable ride height positions
Decking: 1 1/8" apitong decking flush
D-Rings: 2 bent d-rings per side - 4 total
Hydraulics: 13HP honda power unit, dual hydraulics with aluminum cover
Tool Box: None
Flip Neck: frame reinforcement, air, electric and brackets for 36" flip neck ext. 36" flip neck extension
MAIN DECK- 3 BEAM DESIGN
Length: 33' (32' 6" of clear deck)
Loaded Deck Height: 12" W 4" ground clearance
Decking: steel decking between main beams with durabak
1 1/8" apitong decking, flush between main beams and outer beams
1 1/8" apitong decking, flush between main beams and outer beams
Crossmember: 4" JR. I I beams on 12" centers
mid-header in main deck
mid-header in main deck
Side Beams: FAB I-BEAMS 8"
D-Rings: 10 bent d-rings per side- 20 total
Ramps: tapers to 4"

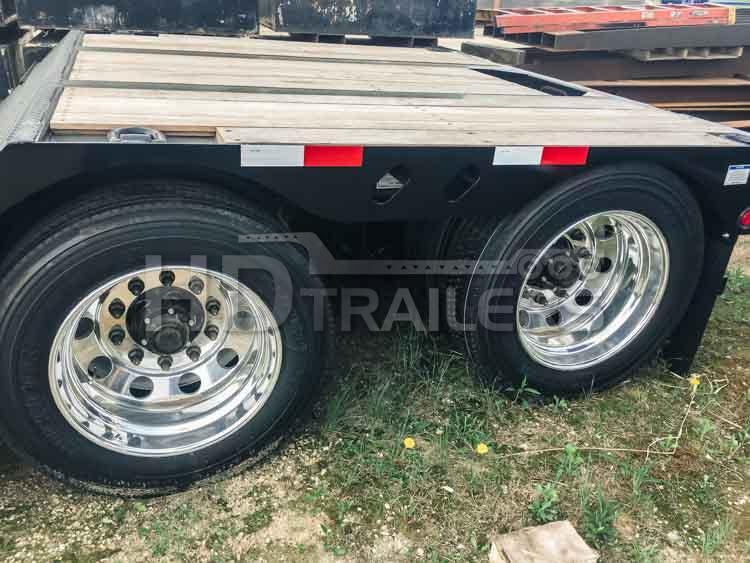

REAR DECK-
Length: 9'
Loaded Deck Height: 40"
Axles: ( 2 ) 25,000 nominal, 77 1/2'' tracking
Tires: 255 / 70R / 22.5 HANKOOK
Wheels: 8.25 X 22.5 steel inside, aluminum polished outside disc wheels
